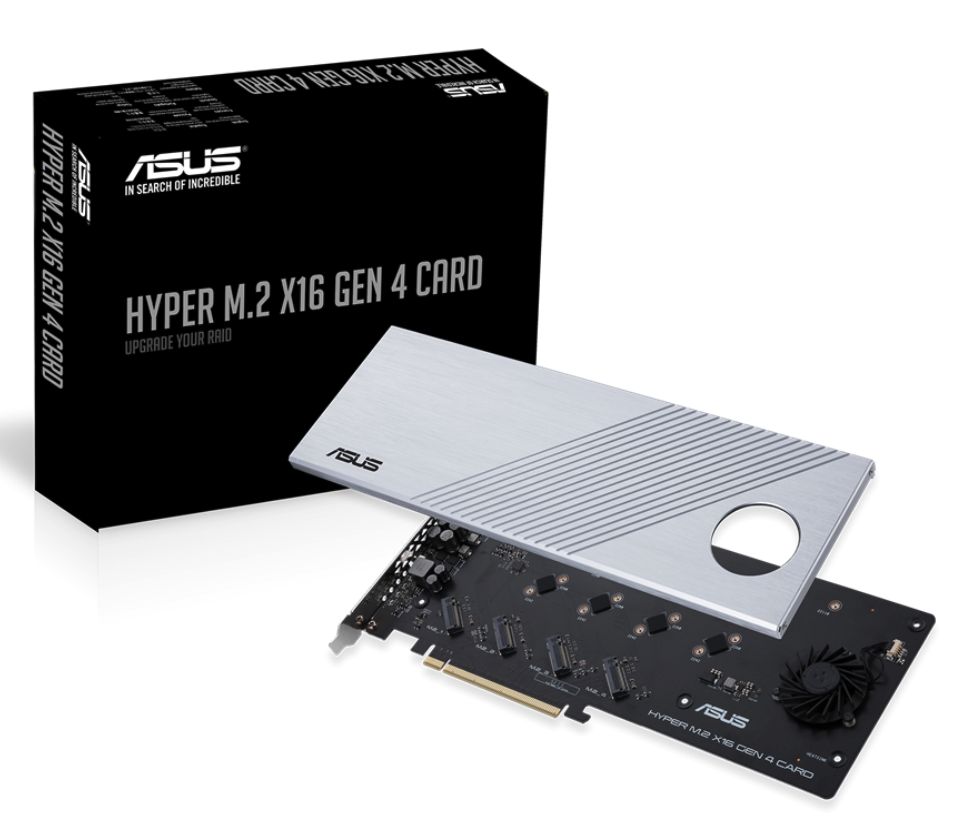

ASUS Hyper M.2 x16 Gen 4 SSD expansion card

ASUS Hyper M.2 x16 Gen 4 Card (PCIe 4.0/3.0) supports four NVMe M.2 (2242/2260/2280/22110) devices up to 256 Gbps for AMD TRX40/X570 PCIe 4.0 NVMe RAID and Intel® platform RAID-on-CPU functions.
.Two-phase power solution with up to 14-watt output supports the latest NVMe drives

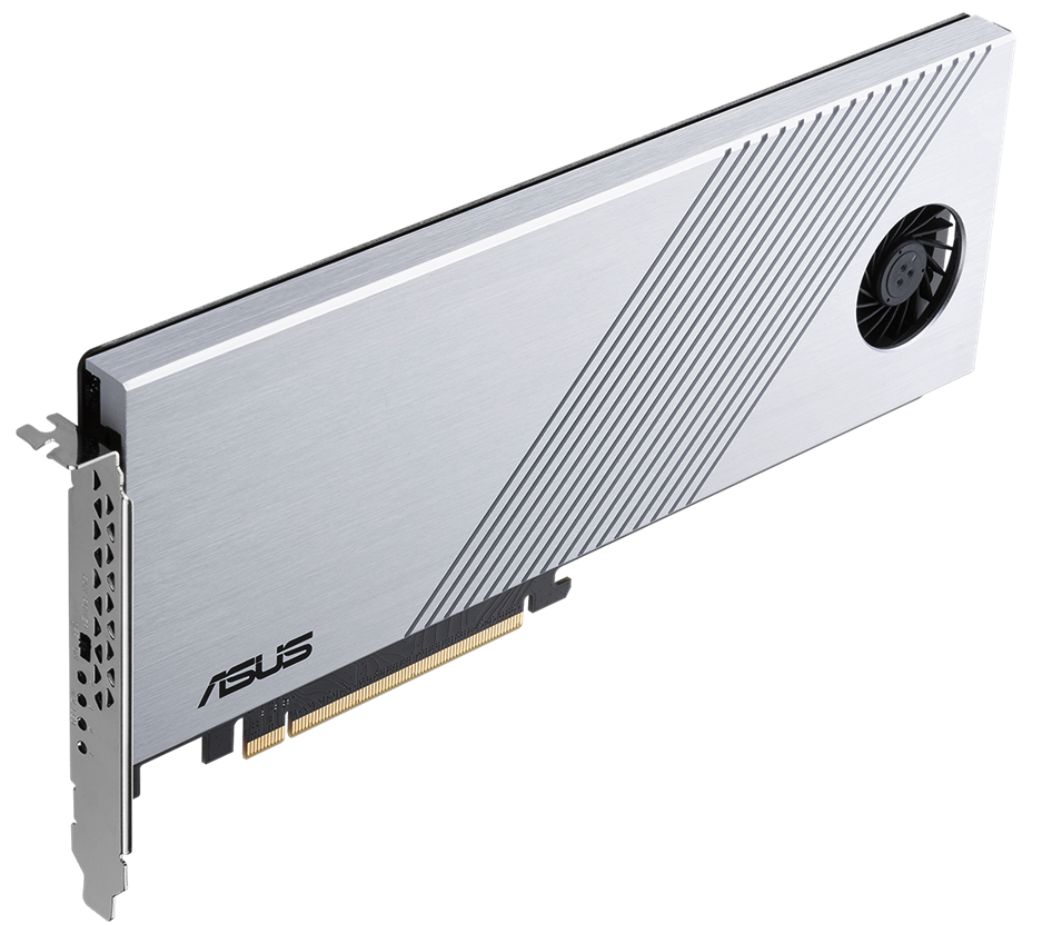

.Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability

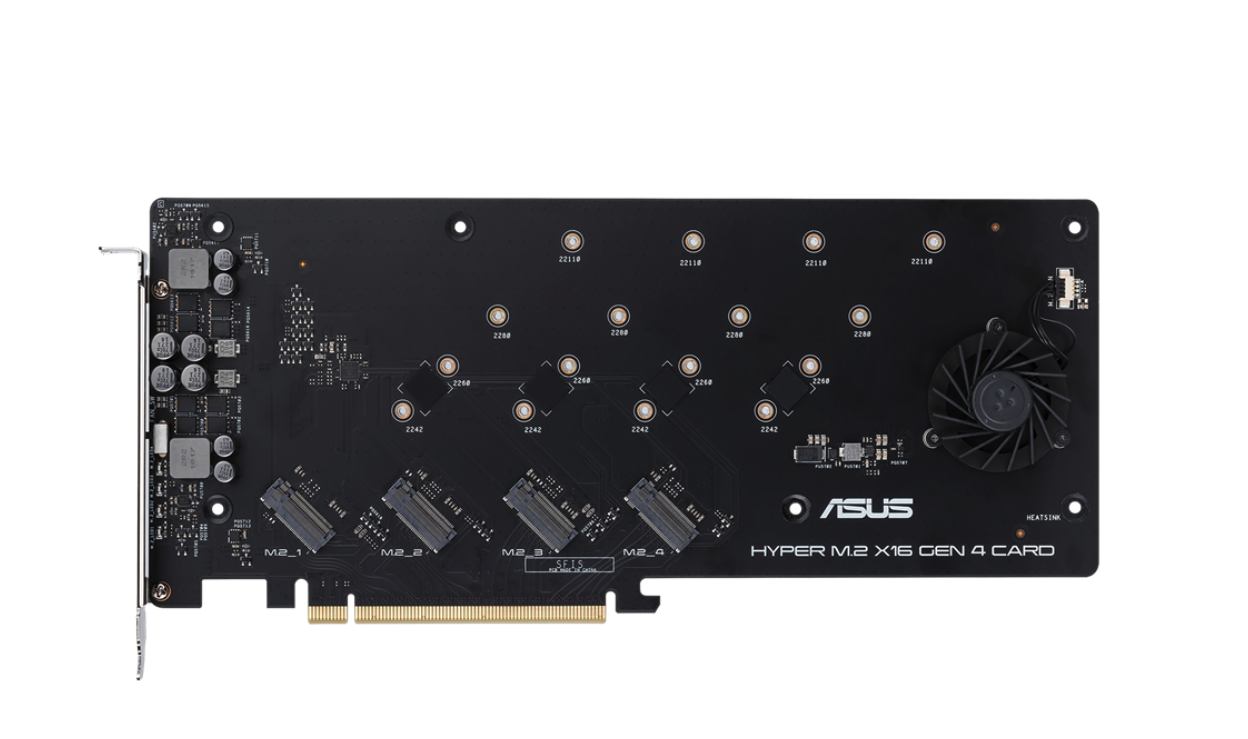

.Adapted server-grade PCB supports up to four PCIe 4.0/3.0 M.2 drives, with up to 256 Gbps bandwidth for smooth data transfers
.Compatible with AMD TRX40/X570 PCIe 4.0 for NVMe RAID and supports Intel® platform RAID-on-CPU functions
.Also support other vendors’ motherboards via PCIe bifurcation in BIOS setting

Support platform :
Intel: X299/Z490/W480/Z590/Z690/W680/Z790/H770/W790
AMD: X399/B450/X470/B550/X570/A620/B650/X670/WRX80/TRX50/WRX90

For more details, please visit Asus support page.
ASUS Hyper M.2 x16 Gen 4 SSD expansion card
．Motherboard support list:
English: https://www.asus.com/support/faq/1037507/
Chinese: https://www.asus.com/tw/support/faq/1037507/

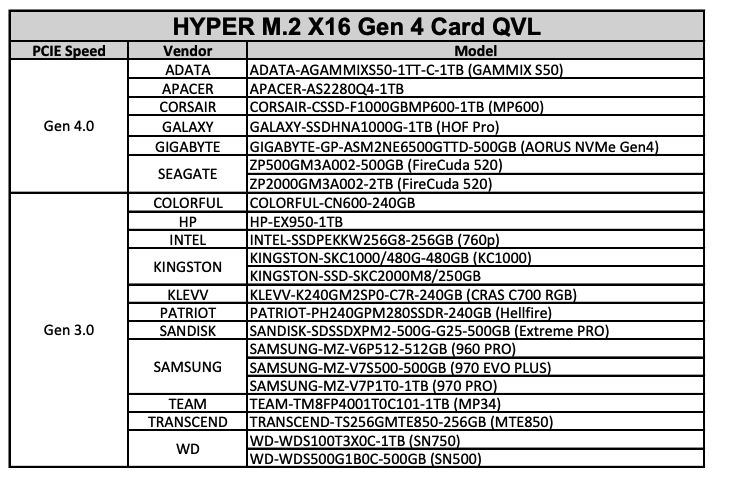

．SSD support list:
