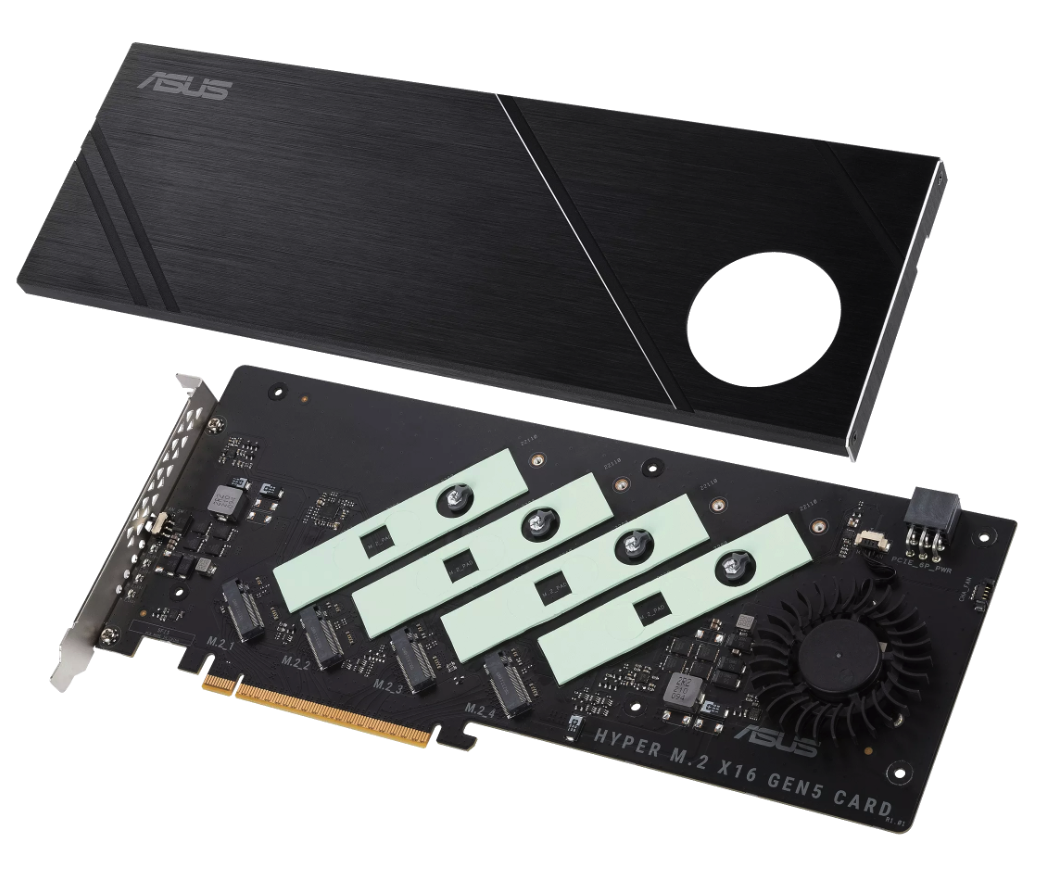

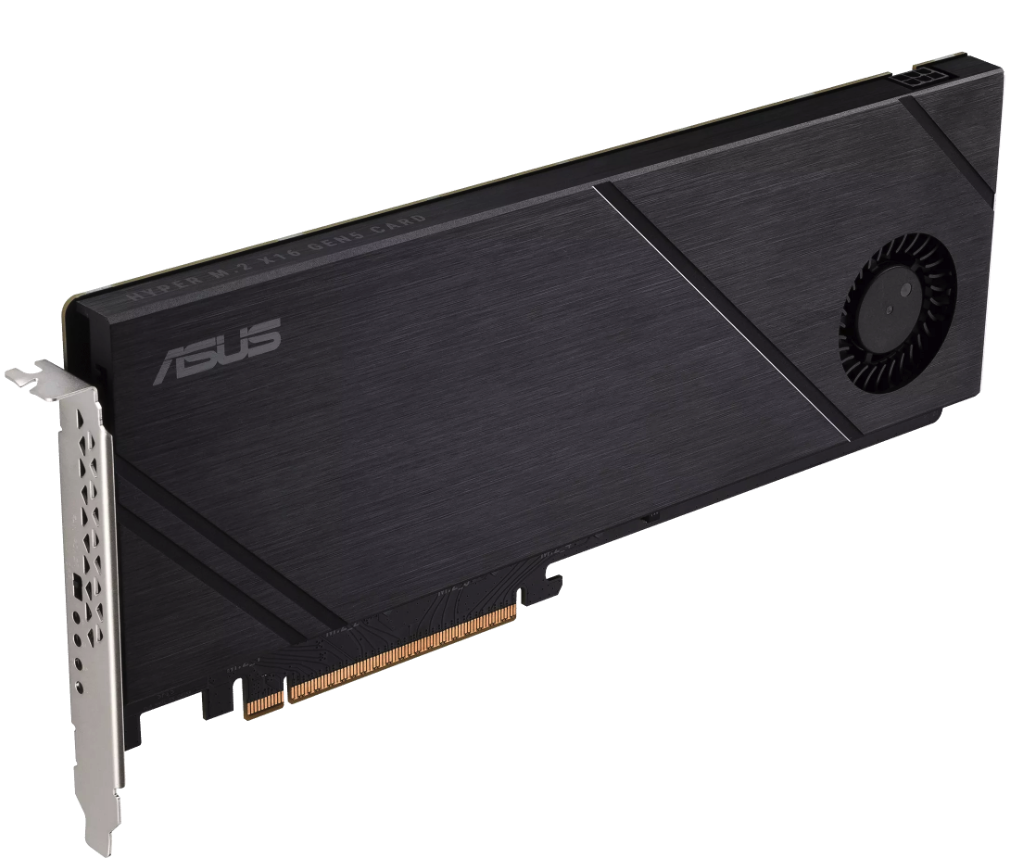

ASUS Hyper M.2 x16 Gen 5 SSD expansion card

ASUS Hyper M.2 x16 Gen5 Card (PCIe 5.0/4.0) supports up to four NVMe M.2 (2242/2260/2280/22110) devices at up to 512 Gbps for RAID functions across diverse CPU platforms
.1 x 6-pin PCIe power connector and two-phase power solution with up to 14-watt output to support the latest NVMe drives
.Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability; additional fan cable connects to the motherboard’s chassis fan header to allow the motherboard to control and regulate fan speed
.Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers

Support platform :
Intel: X299/Z490/W480/Z590/Z690/W680/Z790/H770/W790
AMD: X399/B450/X470/B550/X570/A620/B650/X670/WRX80/TRX50/WRX90

For more details, please visit Asus support page.
ASUS Hyper M.2 x16 Gen 5 SSD expansion card
．Motherboard support list:
English: https://www.asus.com/support/faq/1037507/
Chinese: https://www.asus.com/tw/support/faq/1037507/

．SSD support lis:
